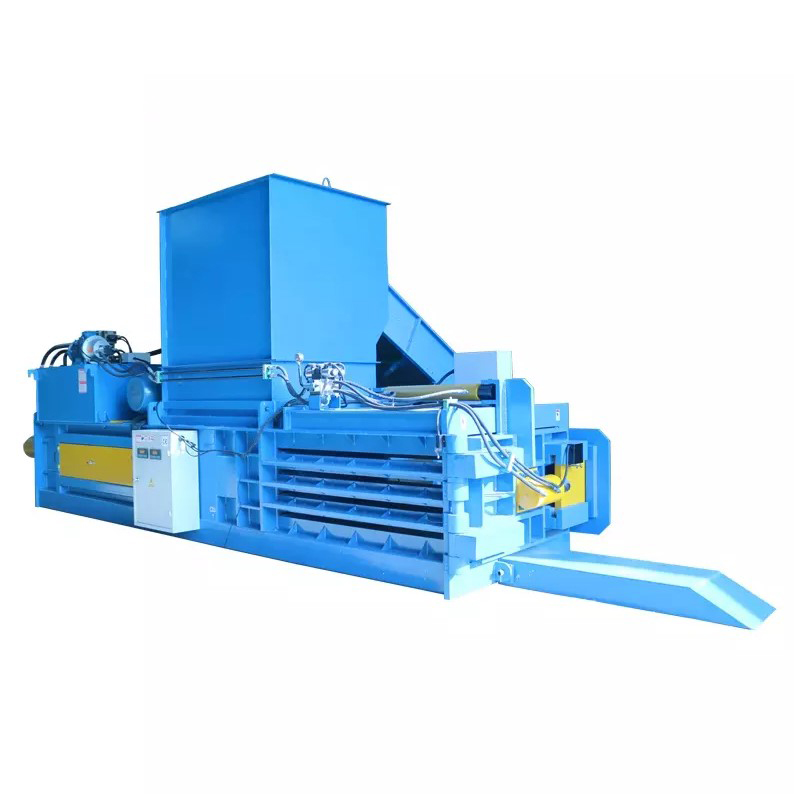

Semi-automatic horizontal baler
Semi-Automatic Balers With Closed Gate Specialized in recycling and compressing the loose materials like plastic film, PET bottles, plastic pallets waste paper, cartons, cardboards trims/scraps, etc. Features of Large, Medium and Small sized Semi-Automatic Balers With Closed Gate Heavy duty close-gate design for more tighter bales Hydraulic locked gate ensures more convenient operation Unique double-cutting design of cutters improves the cutting efficiency and lengthens the lifespan of the cutters Particular anti-slide design of the machine makes nicer bales Unique trunnion-mounted frame and ball-end joint design for the main cylinder avoid the torque on the rod, which lengthens the lifespan of the seals The press heads are specially processed by planomiller, ensures the precise running of the ram Use high quality hydraulic valves from Taiwan, ensures the stable running of the machine The heavy duty machine body makes sure only flat ground is required by the installation.
|
Model |
Pressure(tons) |
Bale size (L*W*H)mm |
Feed opening size(mm) |
Bale weight (kg) |
Power (kw) |
Machine size (L*W*H)m |
Conveyorsize (W*L）m |
|
SHB40 |
40 |
720*720*500~1000 |
1000*640 |
250~350 |
11 |
7*1*1.5 |
1*8 |
|
SHB60 |
60 |
1100*750*600~1200 |
1200*1020 |
450~650 |
15 |
7.5*1.5*1.8 |
1*8 |
|
SHB80 |
80 |
1100*1100*800~1500 |
1500*1020 |
750~950 |
18.5 |
8.5*1.5*2.2 |
1.5*8 |
|
SHB100 |
100 |
1100*1100*800~1600 |
2000*1020 |
850~950 |
30 |
9*1.5*2.5 |
1.5*10 |
|
SHB100D |
100 |
1100*1300*800~1600 |
2000*1020 |
950~1050 |
30 |
9*1.5*2.5 |
1.5*10 |
|
SHB120 |
120 |
1100*1100*800~1600 |
2200*1020 |
1050~1150 |
37 |
10*1.5*2.8 |
1.8*12 |
|
SHB120D |
120 |
1100*1300*800~1600 |
2200*1020 |
1100~1250 |
37 |
10*1.5*2.8 |
1.8*12 |
|
SHB150 |
150 |
1100*1100*800~1600 |
2200*1020 |
1200~1350 |
45 |
10*1.6*2.8 |
1.8*12 |
|
SHB150D |
150 |
1100*1300*800~1600 |
2200*1020 |
1200~1350 |
45 |
10*1.6*2.8 |
1.8*12 |
Application
