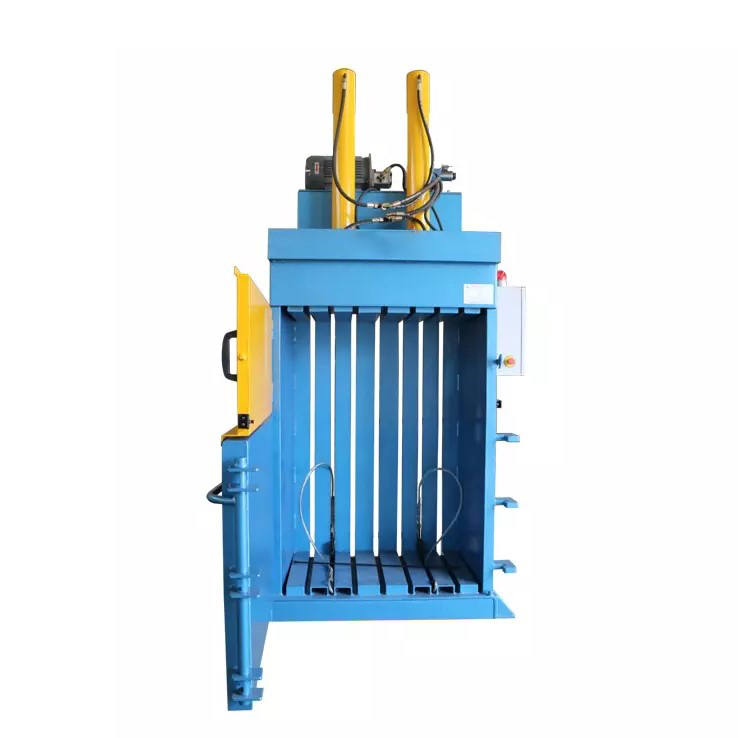

Double Hydraulic cylinder vertical baler machine
Double hydraulic cylinders baler machine have two hydraulic cylinder. The different force ratio and number of rams will depend on what you intend to bale-obviously. More rams and force means you can bale harder/larger/stronger material(such as tires/tyres).
hese recycling machines are smaller, manually strapped, and compress from the top-down due to which such baler is also called down stroke baling press machine. These vertical baling machines are best suited for textile manufacturers, warehouses, grocery stores, or any commercial entity that generates/recycles materials like used clothing, cardboard, cartons, coconut fiber, plastic bottles. UBC(used beverage containers), shrink wrap, soft packaging, fabric scrap, tyre/tires, woos shavings, and similar.
|
Model |
Hydraulic pressure (tons) |
Feed opening size(mm) |
Bale size(mm) |
Bale weight (kg) |
Power(kw) |
Machine size(m) |
Operation |
|
SVD40-11070M |
40 |
1100*550 |
1100*700*500~900 |
180-250 |
7.5KW/10HP |
1.5*1*3.15 |
Manual |
|
SVD40-11070E |
Electric |
||||||
|
SVD50-11075M |
50 |
1100*550 |
110*750*500~1000 |
250-320 |
7.5KW/10HP or11KW/15HP |
1.6*1.2*3.2 |
Manual |
|
SVD50-11075E |
Electric |
||||||
|
SVD60-12080M |
60 |
1200*550 |
1200*800*500~1000 |
300-380 |
11KW/15HP |
1.7*1.2*3.25 |
Manual |
|
SVD60-12080E |
Electric |
||||||
|
SVD80-12080M |
80 |
1200*550 |
1200*800*500~1000 |
350-420 |
15KW/20HP |
1.8*1.2*3.3 |
Manual |
|
SVD80-12080E |
Electric |
||||||
|
SVD80-15076M |
100 |
1500*550 |
1500*760*500~1000 |
400-500 |
18.5KW/25HP |
2*1.2*3.35 |
Manual |
|
SVD80-15076E |
Electric |
Application
