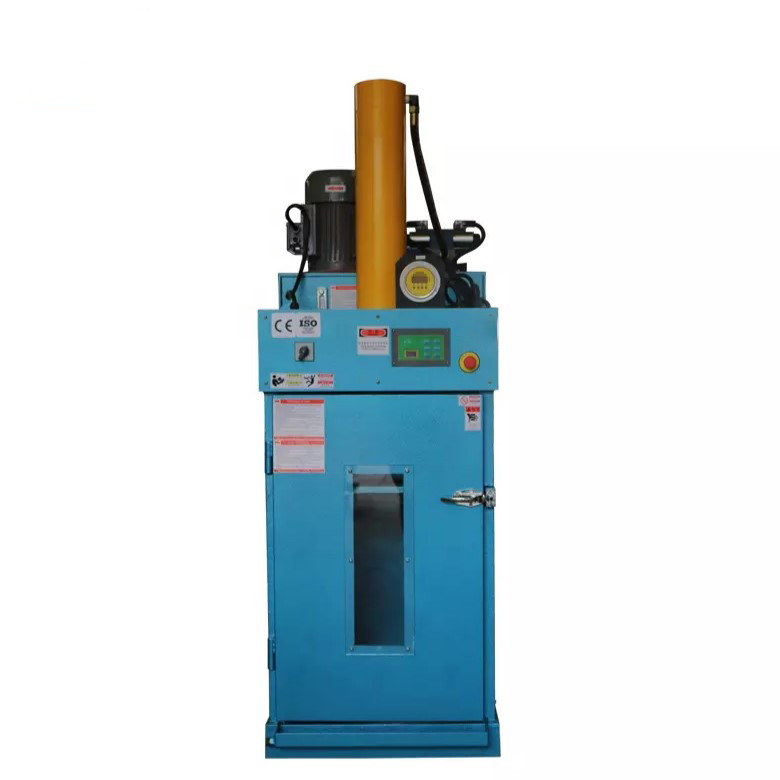

Barrel blaer machine
The baler of this type machine is dedicated to press barrel drum; High Automatic system and close the chamber door machine will working automatic; Automatic control model ,more efficiency; Alarming light hint under working state; Instant stopping button with separate installation is obvious to find and safer while operating; Peculiar combination of motor and pump with direct-crossed connection makes sure 100 percent concentric, replacing the common coupling connection and extending pump’s using life; Specially used for compressing various steel drums like oil drums, paint drums etc. Widely use in the industries which generate huge amount of drums,oil barrel greatly save space and convenient for transportation.
Main Features of Steel/Oil Drum Baler
♦ Bottom liquid receiver is optional for collecting the liquid

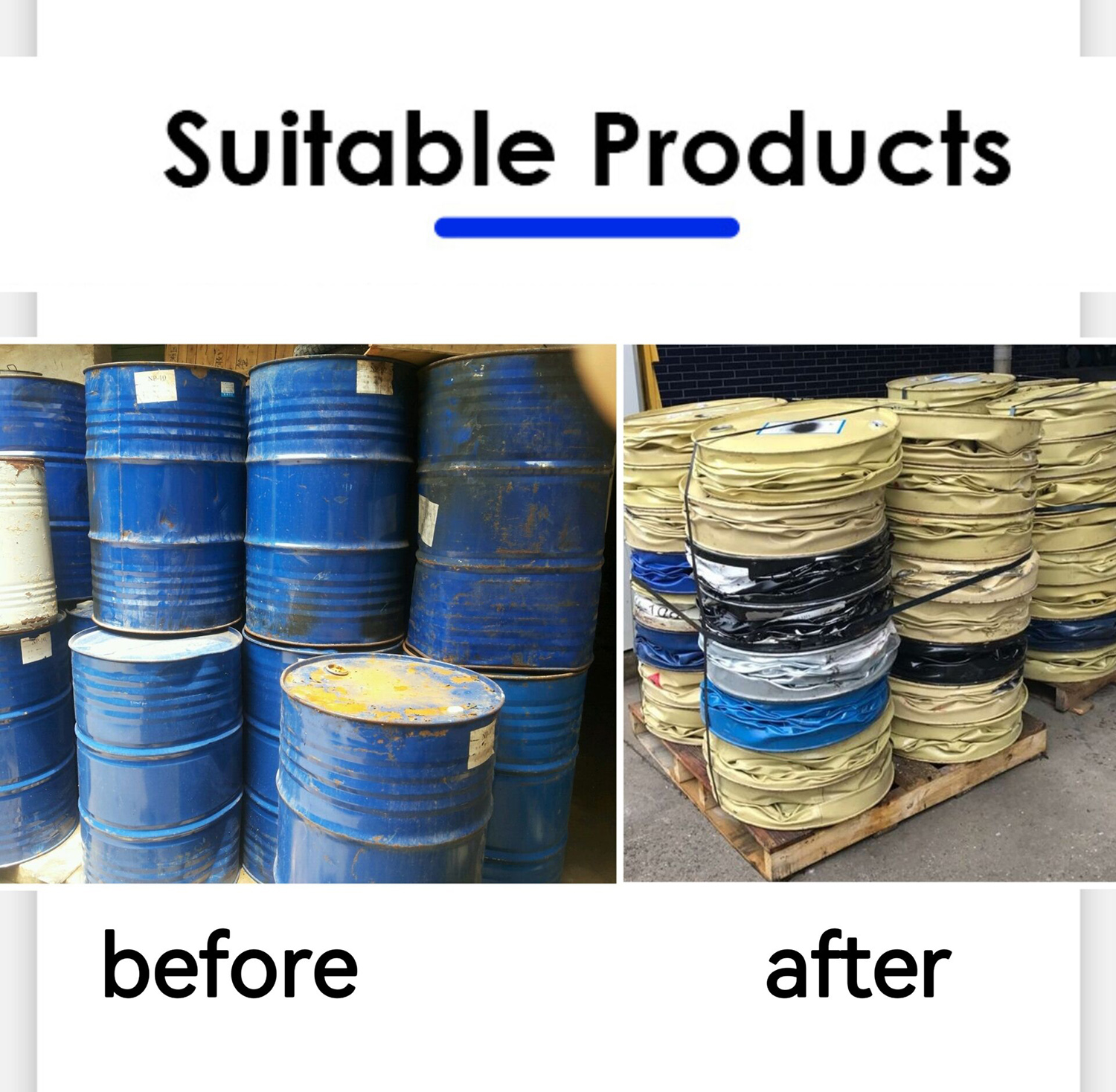

♦ Easily compress steel or oil drums without explosive content up to 200litre
♦ Spikes in the press plate puncture the drum and remove air
♦ Interlock system prevents the motor from running unless the door is closed
♦ The press plate will stop running downwards when the door is opened which ensure the safety of the operation
♦ Equipped with independent emergency stop for safe operation
♦ Equipped with Euro and U.S standard anti-rebound gate structure which makes sure the safety of operation
♦ Equipped with NOK seals that from Japan means longer lifespan of the seals
♦ Equipped with A.M.C. oil pipe joints that from Japan ensures the machine far away from oil leakage problems
|
Model |
Pressure (tons) |
Chamber size (L*W*H)mm |
Bale Height (mm) |
power |
Machine size (L*W*H)mm |
Machine weight |
|
SVB30 |
30 |
760*760*1000 |
100-130 |
5.5KW/7.5HP |
900*900*2600 |
800 |
|
SVB40 |
40 |
760*760*1000 |
80-100 |
7.5KW-10HP |
900*900*2700 |
1000 |
Application
